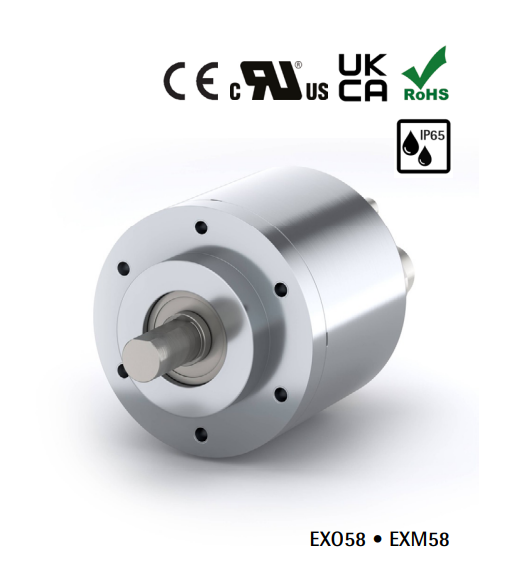

ENCODER ABSOLUTOS CON INTERFACES ETHERNET EXM58S

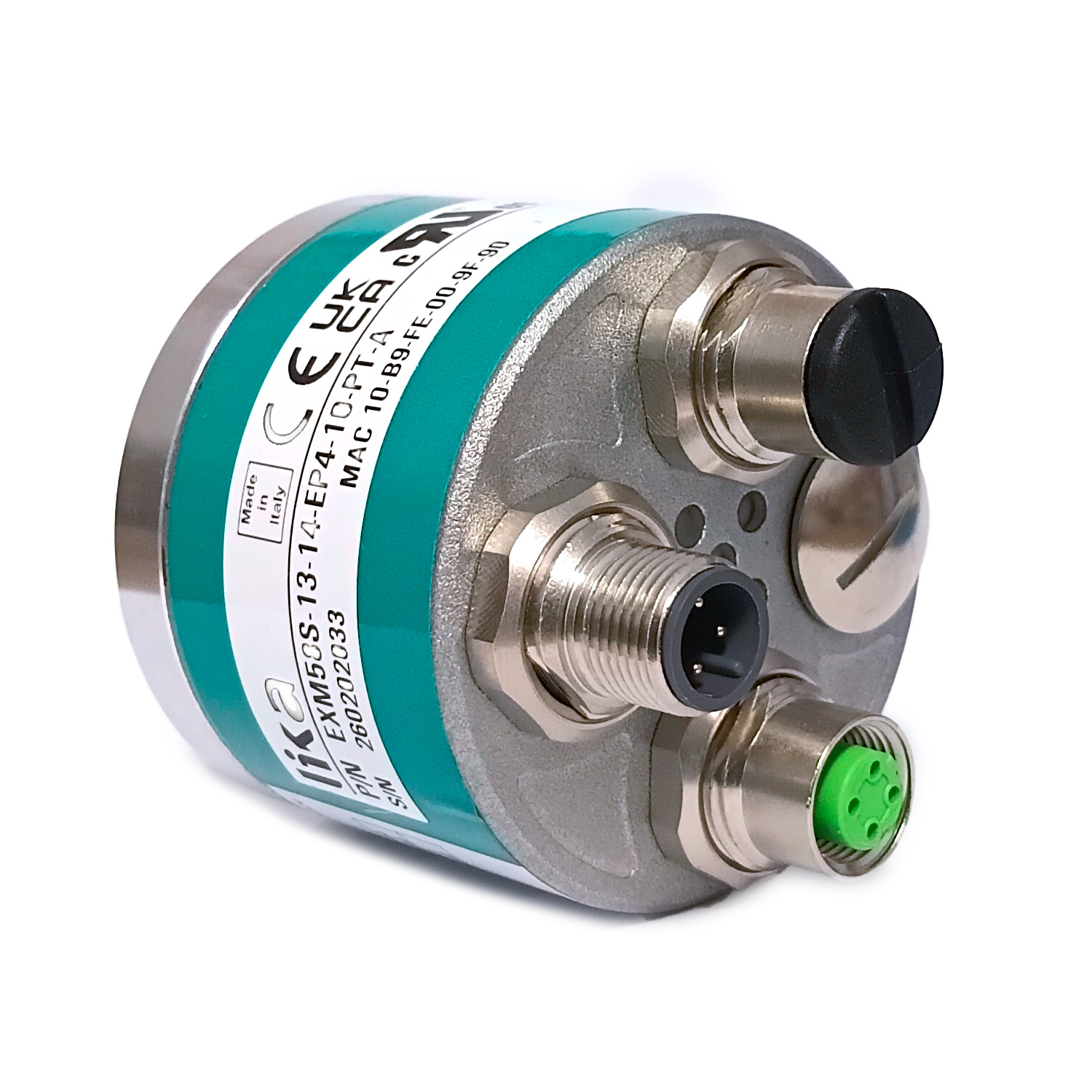

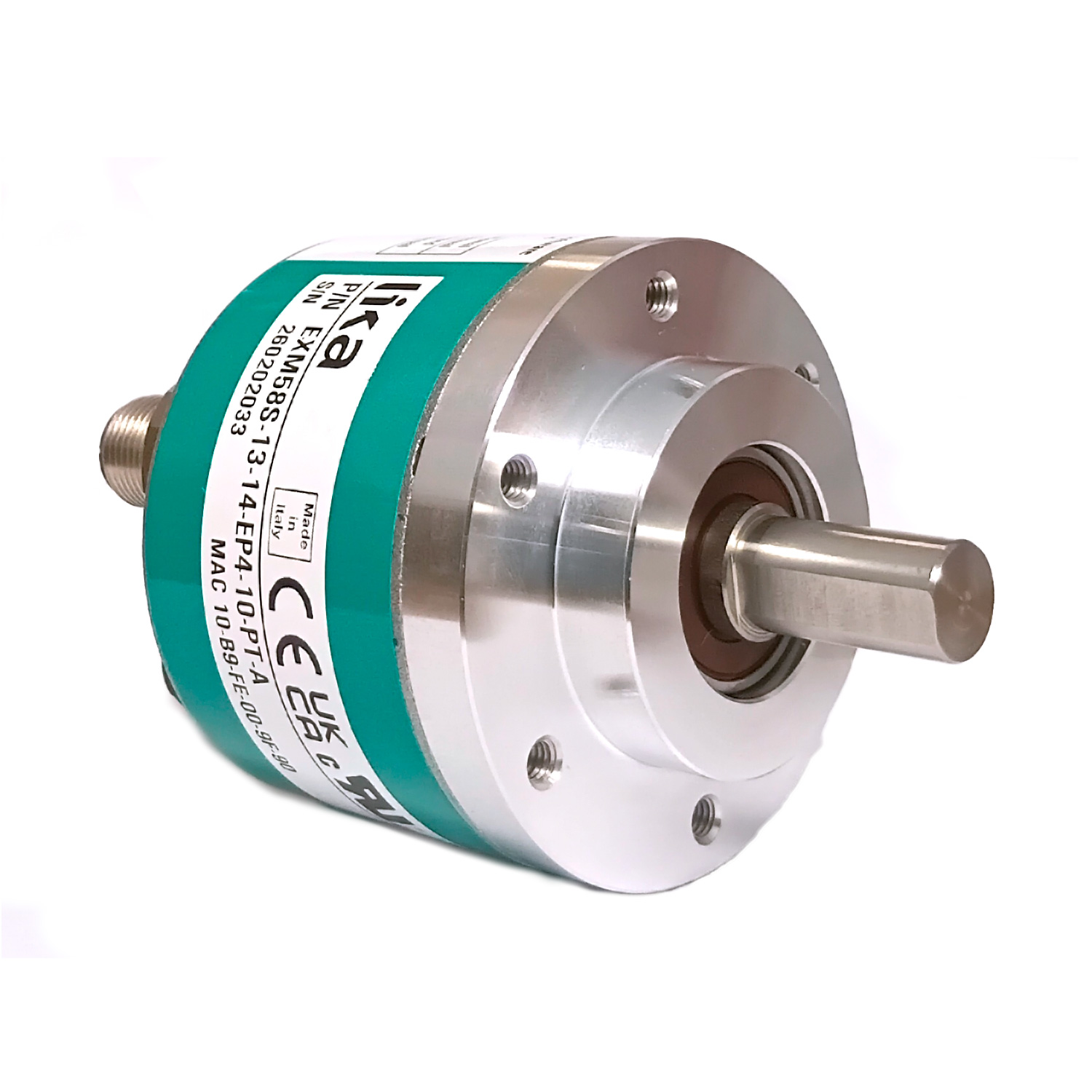

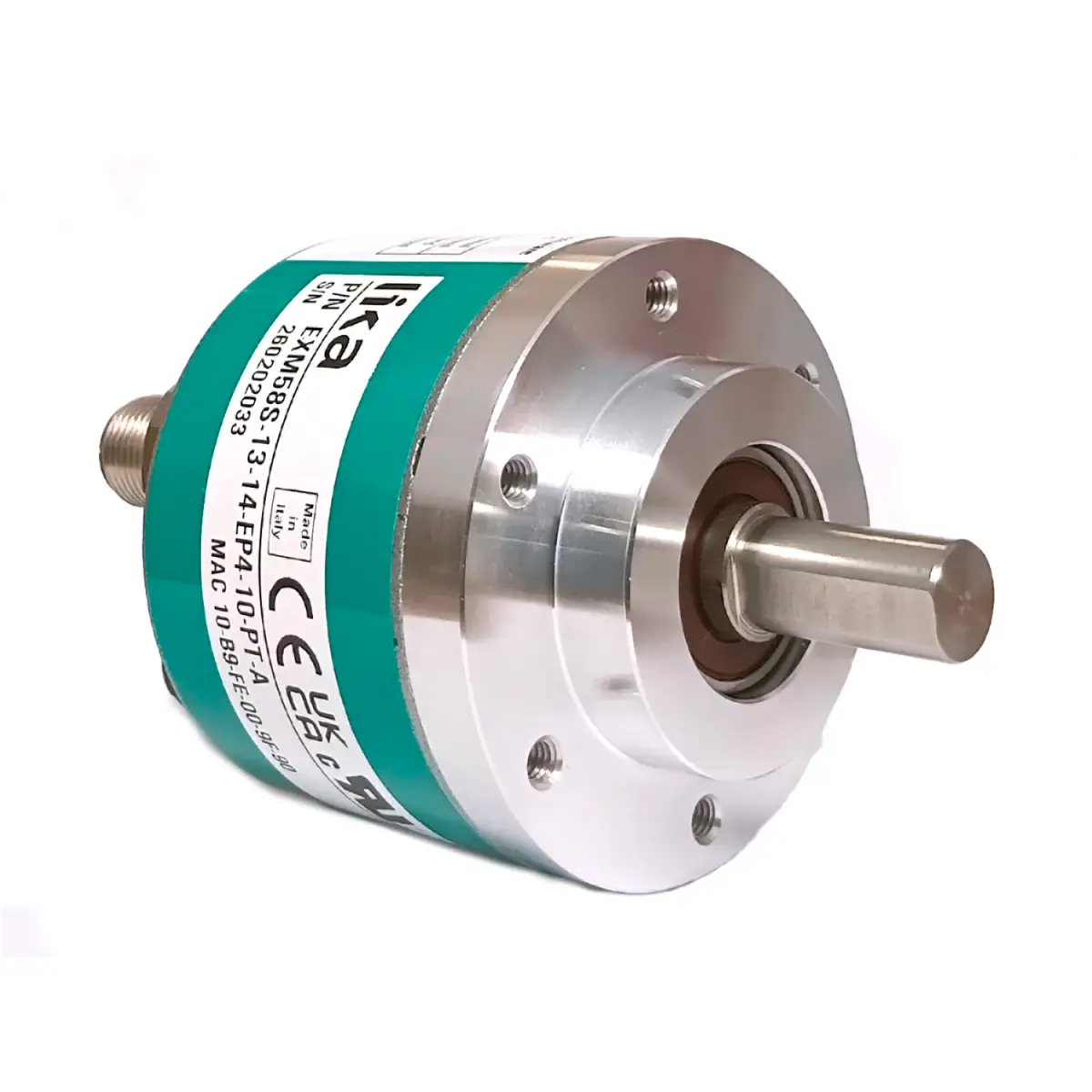

o ENCODER DE BUS DE CAMPO ETHERNET EXM58S-13-14-EP4-10-PT-A
o MULTIVUELTA MAGNÉTICA DE PROPÓSITO GENERAL CON 13 X 14 BITS
o SALIDA DE CONECTOR AXIAL
o VERSIONES DE EJE MACIZO Y HUECO

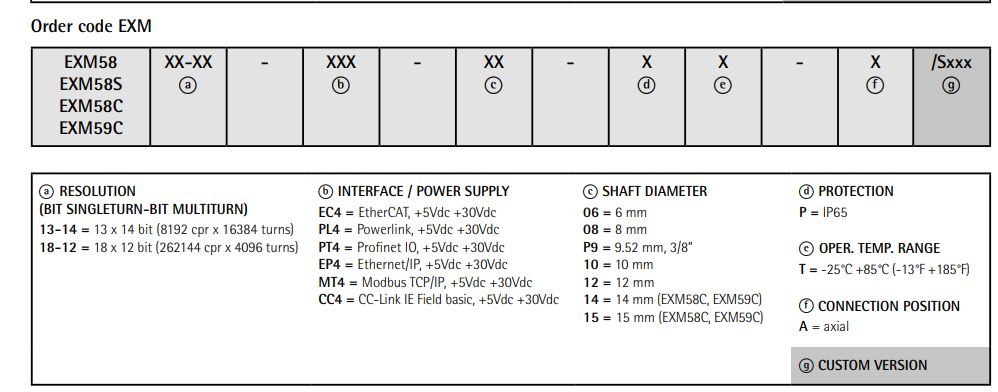

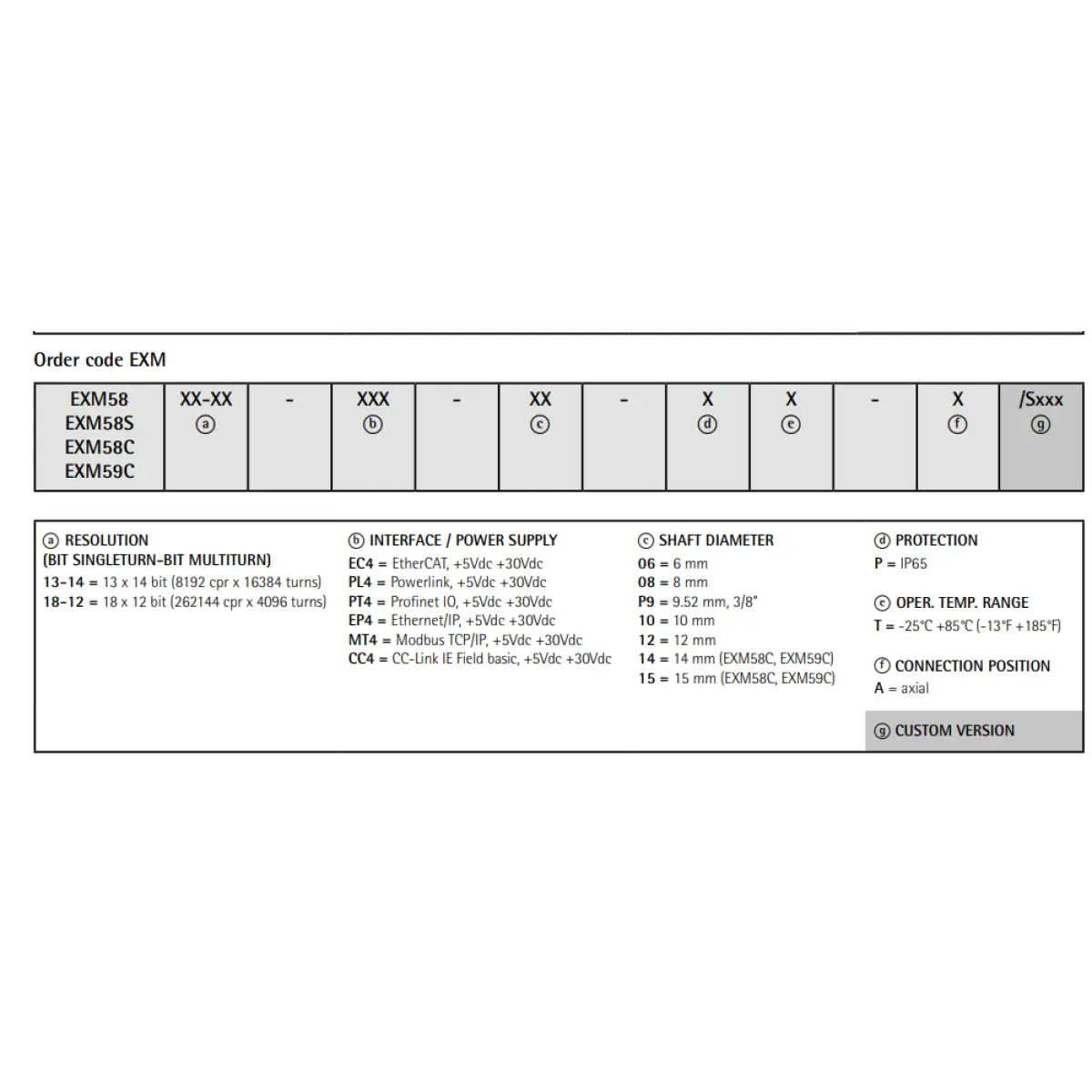

RESOLUTION
(BIT SINGLETURN-BIT MULTITURN): 13-14 = 13 x 14 bit (8192 cpr x 16384 turns)
INTERFACE / POWER SUPPLY: EP4 = Ethernet/IP, +5Vdc +30Vdc
SHAFT DIAMETER: 10 mm
PROTECTION: IP65
OPER. TEMP. RANGE: -25°C +85°C (-13°F +185°F)
CONNECTION POSITION: axial
